Query Tab Reference

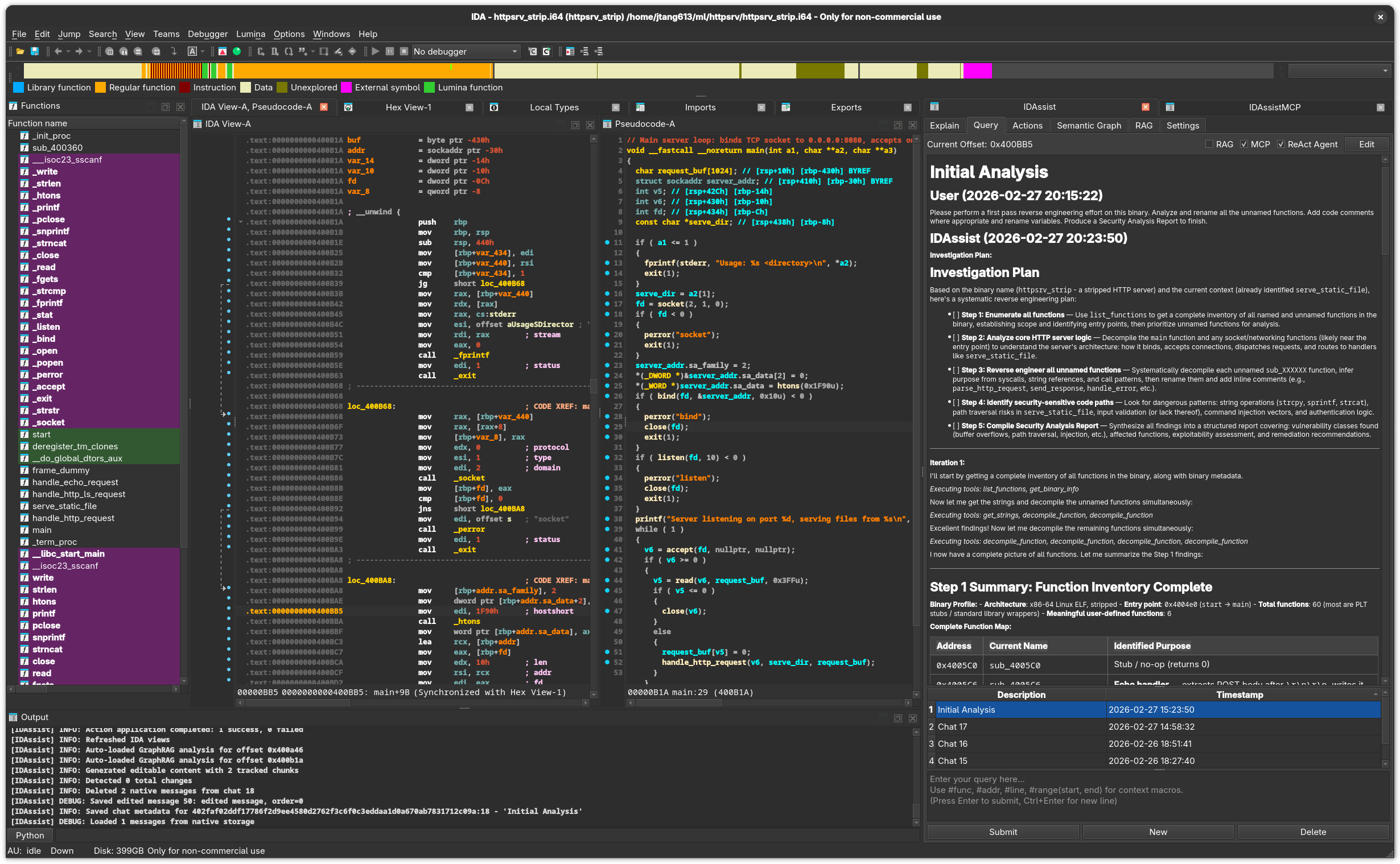

Screenshot

Purpose

The Query tab provides an interactive chat interface for asking questions about the binary. It supports persistent chat history, context macros for injecting code, MCP tool calling, ReAct autonomous agent mode, and RAG-enriched queries.

UI Elements

Top Row

Element Description
Current Offset Address of the function under the cursor.
RAG checkbox Inject relevant RAG document snippets into the query context.
MCP checkbox Allow the LLM to invoke MCP tools during response generation.
ReAct Agent checkbox Enable autonomous multi-round investigation mode.
Edit / Save button Toggle between read mode and edit mode for conversation history.

Chat Content Area

A StreamingMarkdownBrowser that displays the conversation history and streams LLM responses. Features:

Chat History Table

Below the content area, a sortable table lists previous conversations:

Column Description
Description Chat title (auto-generated or user-edited). Double-click to rename.
Timestamp When the chat was created, sorted newest first by default.

Input Area

A text editor for composing queries. Supports:

Input Action
Enter Submit the query
Ctrl+Enter Insert a newline

Placeholder text shows the available context macros.

Button Row

Button Description
Submit Send the query to the LLM.
New Start a new empty conversation.
Delete Delete the selected conversation(s) from history.

During generation, Submit is replaced by Stop to cancel.

Context Macros

Type these macros anywhere in your query to inject IDA context:

Macro Expands To
#func Current function’s pseudocode (Hex-Rays) or disassembly
#addr Address under the cursor (e.g., 0x401234)
#line Current disassembly line at the cursor
#range(start, end) Disassembly for the given address range

Macros are expanded by the controller before the query is sent to the LLM. For #func, IDAssist prefers Hex-Rays pseudocode when available and falls back to disassembly.

Examples:

What does this function do? #func

Is there a buffer overflow at #addr?

Explain this instruction: #line

Analyze this code block: #range(0x401000, 0x401100)

MCP Tool Calling

When the MCP checkbox is enabled and your LLM provider supports tool calling, the LLM can invoke MCP tools during response generation. This enables multi-round interactions where the model:

  1. Analyzes your question
  2. Calls tools to gather additional context (disassembly, xrefs, function names)
  3. Incorporates tool results into its reasoning
  4. Returns a comprehensive answer

Tool calls and their results are displayed inline in the conversation.

ReAct Agent Mode

When the ReAct Agent checkbox is enabled, the LLM operates as an autonomous investigation agent:

  1. Plan — Develops an investigation strategy
  2. Investigate — Executes tools to gather information
  3. Reflect — Evaluates findings and decides next steps
  4. Synthesize — Produces a comprehensive answer

The agent continues across multiple reasoning rounds until it has enough information. You can click Stop at any time to halt the investigation and get the current findings.

ReAct mode is most useful for complex questions that require exploring multiple functions, tracing data flows, or understanding relationships across the binary.

Edit Mode

Click Edit to switch the conversation display to a text editor where you can modify the conversation history. Click Save to store changes. This is useful for cleaning up conversations or correcting context before continuing a discussion.

Chat Persistence

Conversations are stored in the analysis database and persist across IDA sessions. Each chat includes: - All user messages and assistant responses - Timestamps - The binary hash (conversations are associated with the binary being analyzed)

IDA-Specific Details
